ALIGN AP800 Digital Pitch Gauge - Incidencemètre (pales 200 à 800mm)

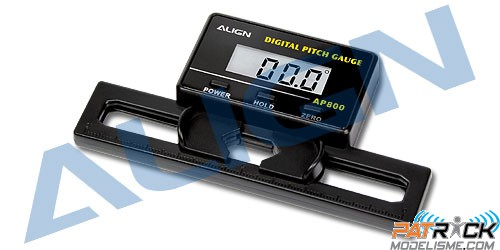

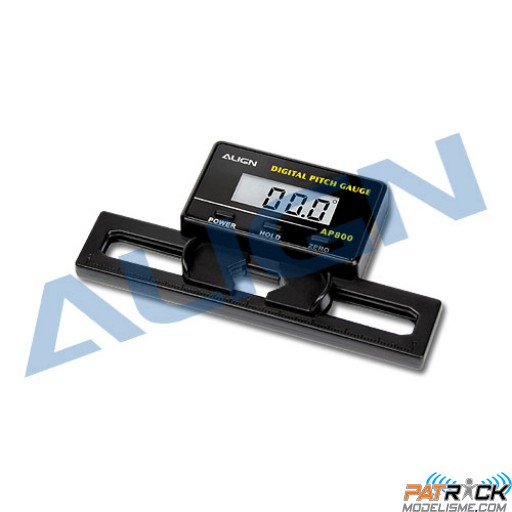

AP800 Digital Pitch Gauge
HET80001


Introduction:
Developed by the R&D team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters. Auto-detecting Horizontal level , with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.

Features:
●Auto-detecting Horizontal level.
●Uses backlighting LCD monitor.
●Zero and Lock function.
●Detectable pitch range: -90° ~ 90°.
●Automatic screen rotation.
●Suitable for 200~800mm main blades.
●Build-in energy saving function. Power shuts down after 3 mins without any movement.

Specification
●Body Dimension：108x53.9x16mm
●Suitable blade width：20mm~74mm
●Detectable pitch range: ±90°
●Resolution: 0.1°
●Battery: 2X CR 2032 Lithium
●Weight:38g (including battery)
