Combo pour Mini Quad Racer FPV - Mini CC3D - LD power MT1806

Combo de motorisation pour mini Quad avec Mini CC3D

Cet ensemble comprends les moteurs LD power MT1806, controleur de vol MINI CC3D, variateurs et hélices.


Présentation:

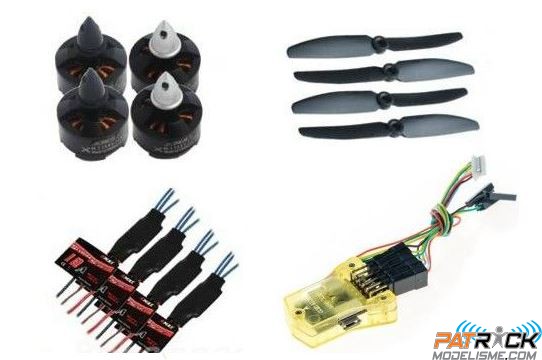

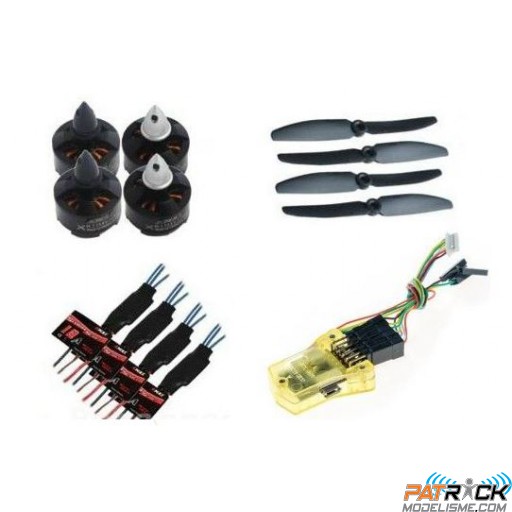

L'ensemble comprends les articles suivants :

4 Moteurs :

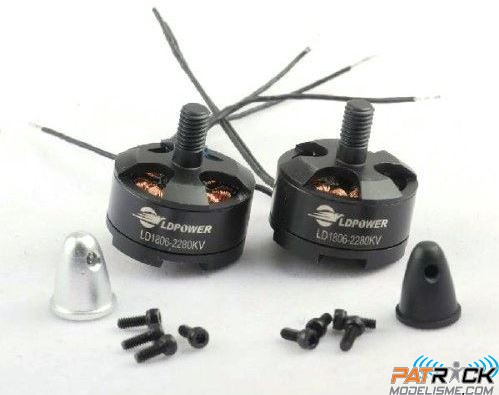

LD power MT1806 2280KV
No. of cell: 2 - 3S
Framework: 12N14P
Shaft: 2mm
Diameter: 26.7mm
Length: 23mm
Propeller: 5 - 6 inch
Weight: 18G

4 Variateurs :

EMAX 12A ESC
Input: 2-3s lipo
Continuous Current: 12A
Burst Current: 15A
BEC Mode: linear
BEC Output: 1A/5V
Dimension: 22*17*7mm
Weight: 8g

1 Controleur de vol :

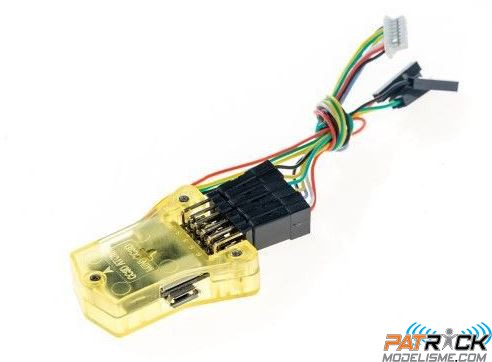

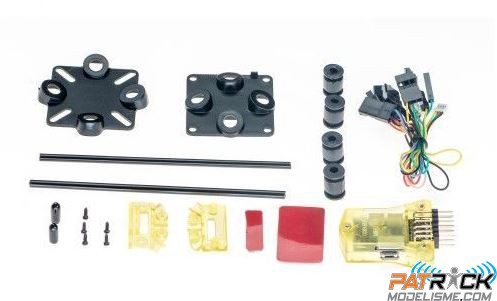

MINI CC3D CopterControl Hardware Features
Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM.
3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer.
Tiny 36mmx36mm 4 layer PCB for superior electrical noise reduction and flight performance.
Software support for Windows, Mac and Linux.
Direct high speed USB support with no drivers required, a truly plug and play device.
Spektrum satellite receiver support.
Futaba S-BUS hardware support.
Innovative Flexi-port technology for superior port flexibility.
4Mbits on-board EEPROM for configuration storage.

4 x Helices Gemfan

Il ne vous reste plus qu'a ajouter un chassis.
