Contrôleur Hifei 18A BEC2A

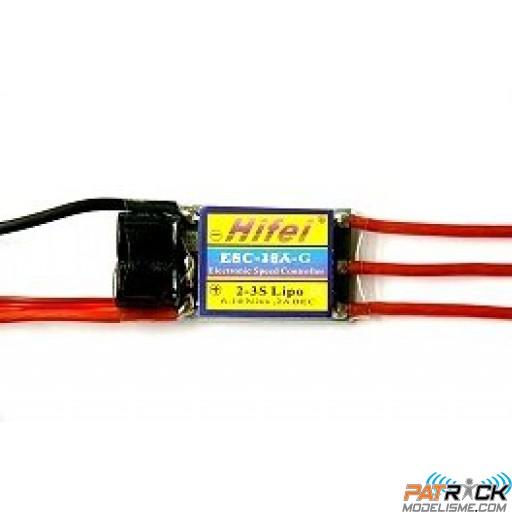

Hifei ESC-18A

1)Microprocessor controlled
2)Extremely low resistance
3)18A continous(23A surge)
4)Up to 12 cells NiMH/NiCad or 2~3 cell Lithium-polymer
5)High rate adjustable switching (PWM:8KHz/12KHz/16KHz)
6)BEC:2A
7)Support 3~4 micro servos
8)Programmable low voltage cutoff
9)Programmable cutoff types(soft cutoff/hard cutoff)
10)Programmable brake type(disable/soft brake/hard brake)
11)Time advance programmable (low/standard/high)
12)Programmable current limiting(very sensitive/standard/insensitive/disable)
13)Governor mode(low rpm governor/high rpm governor)
14)Programmable startup type(very soft start/soft start/fast start)
15)Thermal Protection(100 centigrade)
16)Apply to most of inrunner and outrunner brushless motors.
17)No complex programming, auto adapt work mode.
18)A LED (flashes) indicates the current limiting or temperature protection actived.
19)Runs motor in forward or reverse by swapping any two motor wire connections.
20)Safe “power on” arming program ensures motor will not accidentally turn on.
21)Auto shut down when signal is lost or radio interference becomes severe for more than 3 seconds .After radio connection has been reestablished, moving the throttle to the lowest position can restart the motor.
22)The ESC is disabled when the voltage is over 15V at power-on.

Dimension: 24mm X 23mm X 6mm

Weight: 17g(include wires)
