Nacelle ALWARE Lensman-X 3 axes - Pour DJI S800

Introduction:

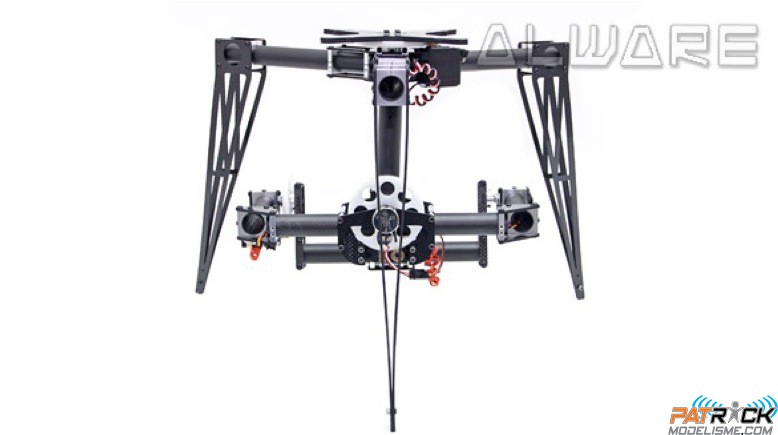

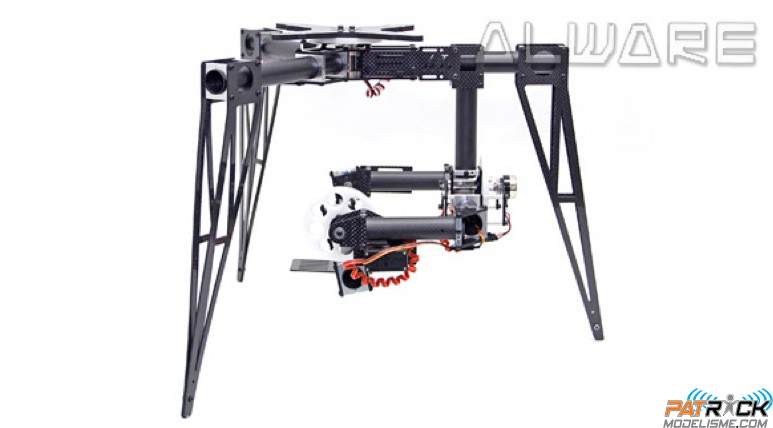

There is a high quality, distinctive, concise and functional 3-Axis Gimbal( 360 degree panning) available for your DJI S800, Streak 800Pro and Streak 1000 MultiCopters to carry professional cameras from GoPro to DSLR cameras up to 2kg for professional aerial photography with amazing price! It is the “Lensman-X Camera 3-Axis Gimbal” which is designed and produced by Alware.


Made of High Quality Materials:
The gimbal is made of 3K Carbon Fiber Frames, 3K Carbon Booms and high quality Anodized CNC Aluminum metal parts. These are the lightest and the strongest materials whose make the gimbal looks more valuable, professional, reliable as well as stronger mechanism.

Continuous 360 Degree Panning:

Unlike others, Lensman-X comes with all 3-Axis controllable movement at once including Tilt axis (±90°) , Roll (±45°) , Pan (continuous 360°). You do not need to worried about to pay for the third axis especially for the most important continuous 360 degree panning axis in the future. This allows the camera operator complete creative control in framing and camera movement. Careful attention that the landing gear will not block the view of the camera lens in Lensman 's design. This making smooth shooting in all directions possible.

High Performance MKS Gimbal Digital Servos:

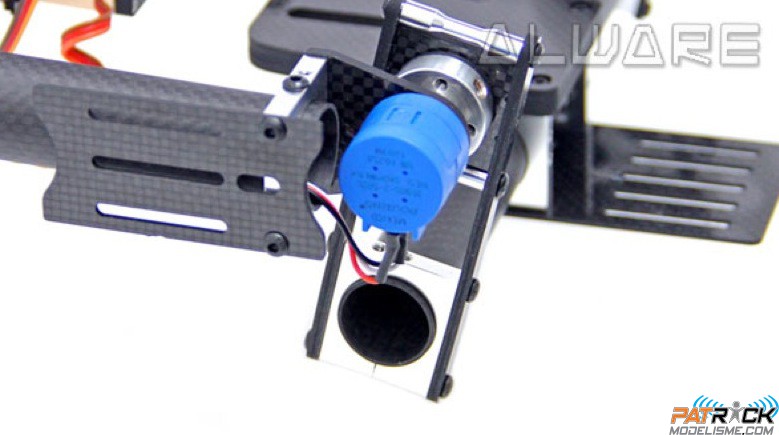

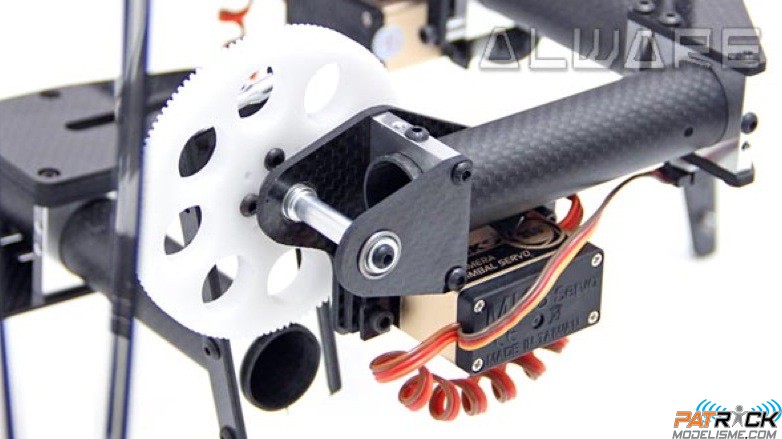

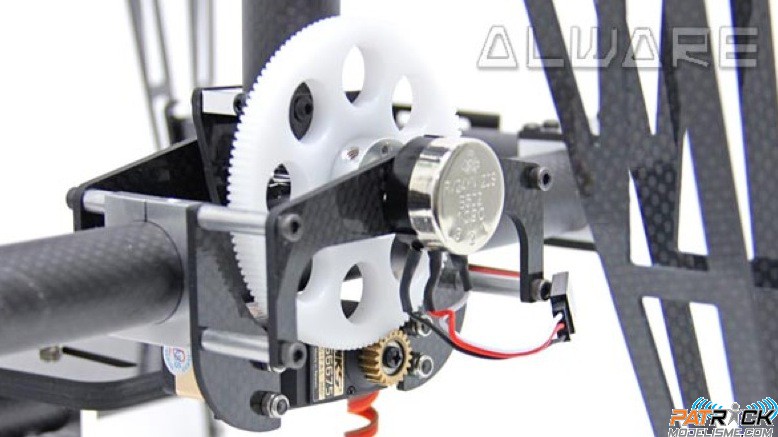

Servos are the heart of a gimbal. Lensman-X use three pcs of 360 degree movement digital servos with metal gears and fast speed. Two of them is used with an external potentiometer to make the maximum range of the movement for the gimbal. Together with POM M0.6 Main Gear and M0.6 Metal Servo Gear on the driving axises, the precision of the gimbal movement can be highly increased.

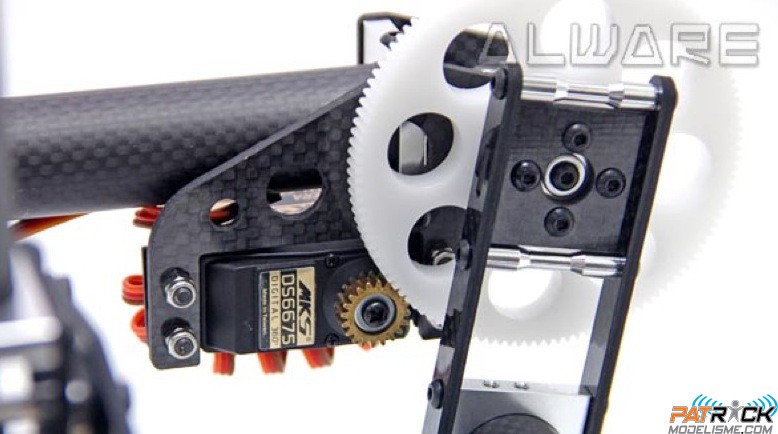

Two genuine MKS 6675 Gimbal digital 360 degree servo(for Tilt and Roll axises) which is super fast with minimum tolerance of the metal gears. This greatly improve the overall performance and the response time of Lensman-X professional gimbal!
MKS 6675 digital 360 degree servo:
Speed: 0.075 s (6.0V)
Torque: 6.6 kg-cm (91.65 oz/in)(6.0V)
Operating Voltage：4.8 ~ 6.0 V DC Volts
Maximum Working Current : 1.7 A (at 6.0V)
Working frequence：1520μs / 333hz
Dead band: 0.001ms (Default)
Please select "Standard Servo(1520um)" of the servo type when using ZYX-GS Gyro, otherwise the servos may be damaged!

Fully adjustable CG of Camera:

Lensman-X Gimbal is designed with Boom-Mounting mechanism which has lesser surface area which provides higher resistance to wind as to increase the stability of the Gimbal in the wind condition. At the same time, the Boom-Mounting mechanism has the highest intensity which could be able to handle up to 2kg payload without vibration. Moreover, this mechanism design does provide another wonderful benefit which is adjustable CG of the camera in all direction. The more precise of the camera CG balancing, the higher the aerial videos quality could be achieved.

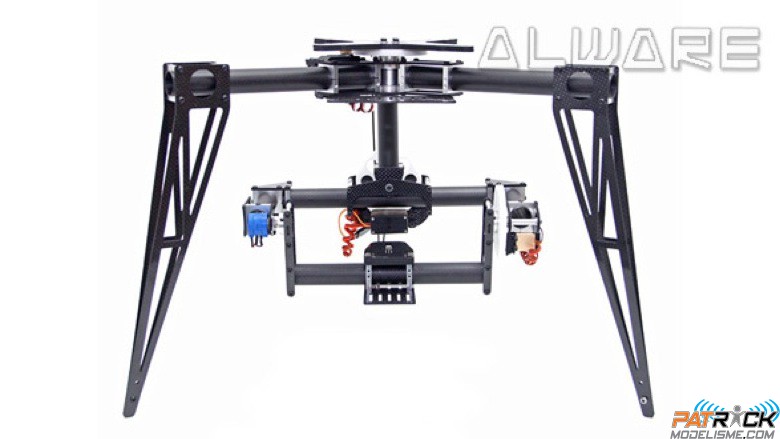

Strong Tripod Landing Gear:

Lensman-X Camera 3-Axis Gimbal comes with a Strong Tripod Landing Gear system. It is made of 3K Carbon Fiber frames and full CNC Metal Mounts which is light, strong and with shock absorble feature. Thus the camera as well as the whole machine could be protected even in a hard landing situation. The position of three Landing Gear could be adjusted independly which will not block the view of the camera lens, making smooth shooting in all directions possible.

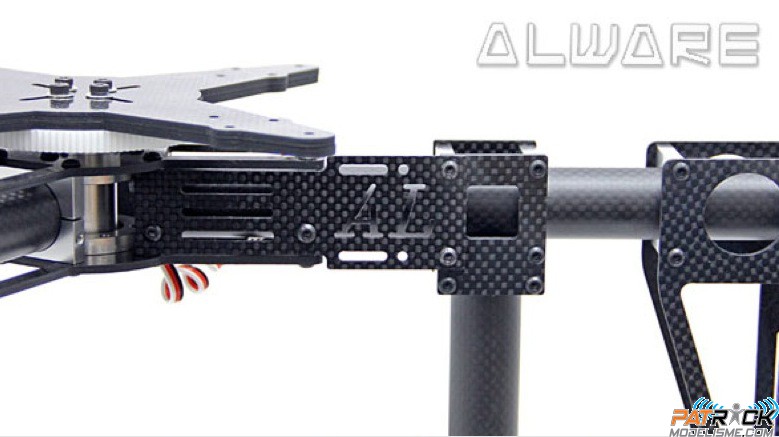

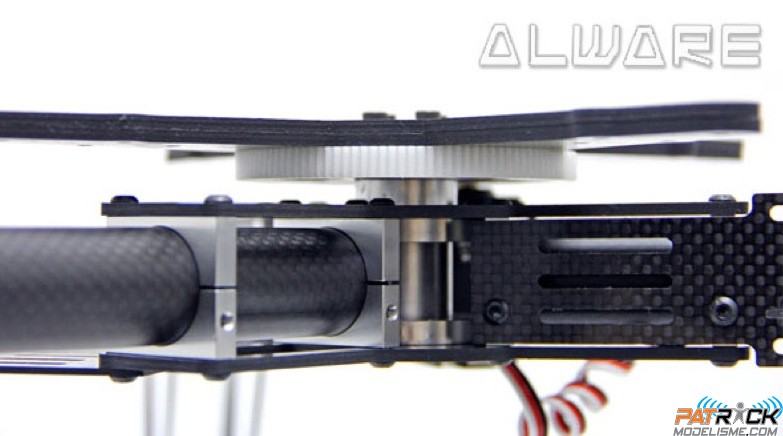

Easy and Rigid Mounting to the Aircraft:

This gimbal use a 5mm (2*2.5mm) thick 3K Carbon Frame which is extreme rigid to mount onto the bottom side of Aircraft with an unique high performance damping system included to get the best performance on aerial photography activities.

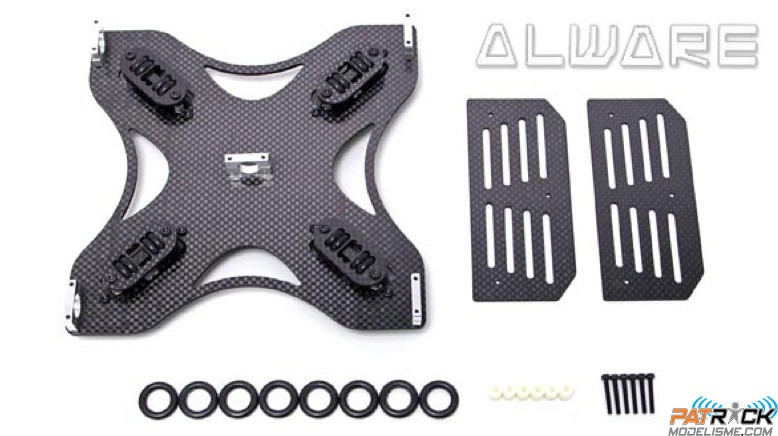

Carbon Fiber Battery Mount and O-Ring Damping System for DJI S800:

You will now be able to carry a DSLR Camera by your DJI S800 Hexacopter with Lensman-X 3-Axis Gimbal without modification. A Carbon Fiber Battery Mount included allow you to put two 6S Lipo Batteries on the main frame of S800 easily and securly. Together with the high quality O-Ring Damping System, a steady video or photo could be capatured with your DSLR Camera.

Easy Assembly Steps:

All Lensman-X gimbal will be preassembled (80% complete) by well-trained technicians and checked carefully before shipping. You will need only to put separate assemblies together easily and mount your own electronic controllers to the Electronic Mount (included) on the gimbal when you got the Kit. Clear instruction manual could be downloaded easily online.

Specification:

- Made of 3K carbon fiber frames + 3K carbon boom + CNC anodized Aluminum metal parts

- Pan axis control: ±360° continuous rotation (including the landing gear)

- Tilt axis control: ±90°
- Roll axis control: ±45°

- Work with 3 Digital Metal Gear Standard Size Gimbal Servos

- Working Voltage: 4.8-6V
- Max. Working Current: 6A

- High quality damping system included.

- Total Weight: 1220g

- This version is used for Streak 800Pro Hexacopter only.

Capable Camera Dimension:

- Weight: 0-2kg

- Width: 0-185mm

- Height: 0

-185mm

Included:

1x Lensman-X Camera 3-Axis Gimbal

1x Strong Tripod Landing Gear

1x O-ring Damping System (For DJI S800)

1x Carbon Fiber Battery Mount For DJI S800

2x High Performance MKS 360 Degree Digital Metal Gear Servos with External Potentiometer

1x 360 Degree Digital Metal Gear Servos with buildin Potentiometer

1x High Quality 1/4 x 13mm Camera Screw
(*Please be noted that Gimbal Stabilizer and other electronics(except the servos) are not included.)
