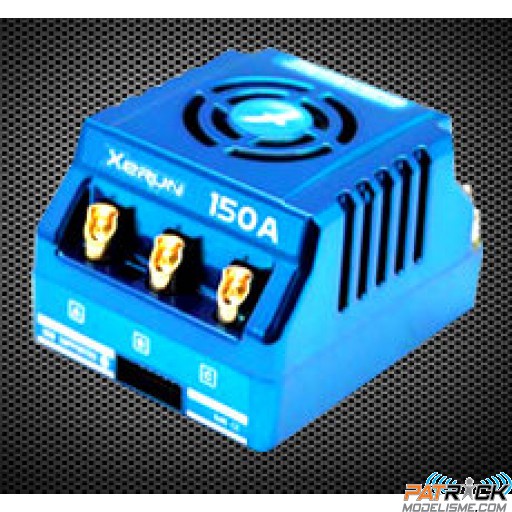

Hobbywing XERUN-150A-SD Sensored Brushless V2.1 ESC 1/8 Car

Hobbywing XERUN-150A-SD Sensored Brushless ESC for 1/8 Car
HWG-XERUN150A-BLUE nouvelle version V2.1

1/8th ESC for buggy/truggy/monster suitable for upto 6s

1/8 scale on-road / off-road / monster competition.

1  Specification

1.1 Output: Continuous 150A, burst 950A.
1.2 Input: 6-18 cells NiMH/NiCd or 2-6S LiPo. (But 2S lipo or 6 cells NiMH is not recommended)
1.3 BEC: 5.75V/3A (Switch mode built-in BEC).
1.4 Resistance: 0.0002 Ohm.
1.5 Motor Supported: Sensorless and sensored brushless motors.
1.6 Suitable Motor:   * Note #1
       When working with 4 cells Lipo: KV<=3000
       When working with 6 cells Lipo: KV<=2400
1.7 Suitable Car:  1/8 On-road/Buggy/Truggy/Monster competition.
1.8 Size: 58mm(L) * 46.5mm(W) * 35mm(H).
1.9 Weight: 105g (Without wires).
*Note #1:  The above KV number is the value of a 4274 sized motor (Diameter=42mm, Length=74mm).

2  Features

2.1 Compatible with most of sensorless and sensored brushless motors such as Novak, LRP and Feigao, etc.
2.2 Large current endurance.
2.3 Excellent start-up, acceleration and linearity features.
2.4 The built-in switching mode BEC has powerful output to supply all electronic equipments.

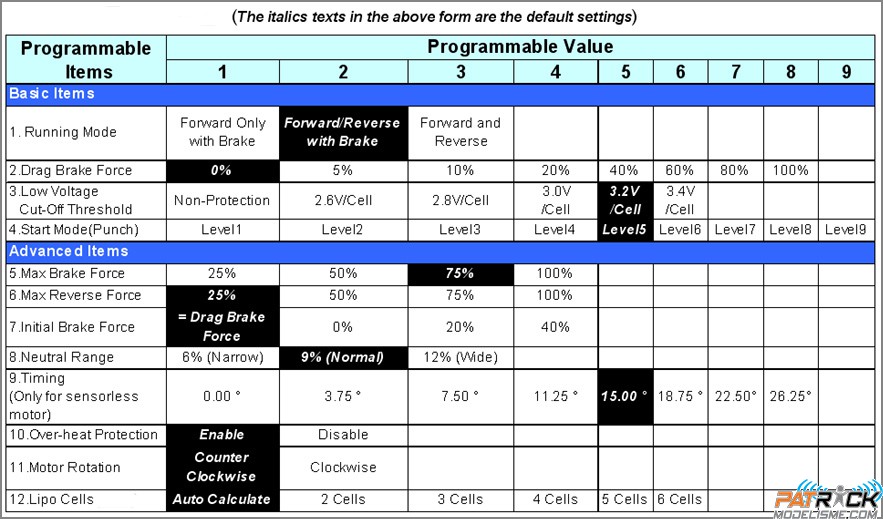

2.5 Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
2.6 Electric brake function, also compatible with mechanical disc-brake system.
2.7 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
2.8 Internal timing can be changed easily to make the ESC suitable for various of motors.
2.9 Easily programmed with the SET button, LED Program Box, Professional LCD Program Box and USB Link Software.
2.10 ESC firmware can be updated through the USB adapter in the LCD Program Box .
2.11 The major electronic components are sealed against splashing water and dust.
2.12 These is a mounting stand for installing the ESC on chassis easily and firmly.
