Moteur brushless Red leopard 3674-B/3.5D-1900 4-Poles Inrunner Bateau

Red leopard 3674-B/3.5D-1900 4-Poles Inrunner Brushless Motor for Boat

Part No.: LBP3674-B/3.5D
Manufacturer: Red leopard Motor


Features

-Red leopard 3674-B/3.5D-1900KV 4-Poles Inrunner Brushless Motor for Boat-36 Series
-new design,four-pole rotor,the overall efficiency of more than 90%;
-extremely low temperature without additional heat sink can meet the vast majority of applications;
-compared to competitive products,lighter weight,higher torque;
-use of high-quality materials:aluminum alloy shell fine,high-quality magnetic steel,high temperature wire,imported high-quality bearings;
-rotor using special materials reinforced,high-speed operation under the non-burst phenomenon;
-good heat dissipation ,high overload capacity；
Low electromagnetic interference;
-minimum required electrical maintenance;
-long life
Product Details

-Model：LBP3674-B/3.5D
-Max Amps：78A
-Lipo Cell：31V
-Max Power：2400W
-KV(RPM/Volt)：1900KV
-Resistance：0.0104
-No-load Current（7.4V）： 2.2A

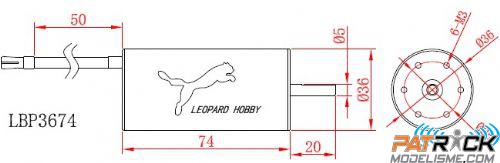

-Diameter×Length (mm)：Φ36.0×74
-Mounting hole depth： 6mm
-Length of extend Shaft ：20mm
-Shaft Diameter (mm)：Φ5.0
-Weight：315G
