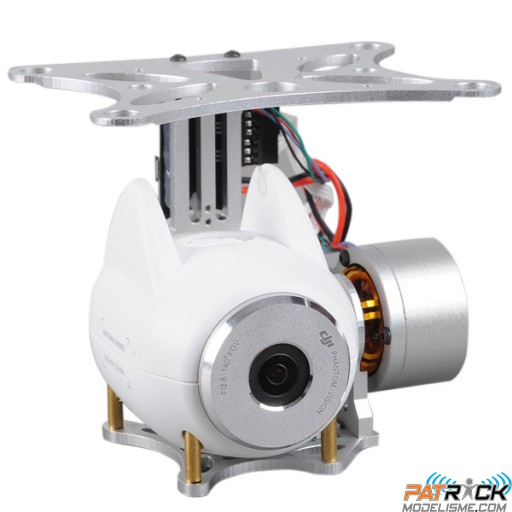

Nacelle brushless 2 axes FC200 pour DJI Phantom 2 Vision

Nacelle brushless 2 axes FC 200 pour DJI Phantom 2 Vision

Description:
Alimentation: 12V
Poids: 240g

Caractéristiques:
- Structure simple et légère CNC en alliage d'aluminium
- Moteurs Brushless à entraînement direct
- 2 moteurs 2208
- Utilisation contrôleur Alexmos 8bit officielle de V2.4B7, capteur, pas besoin de mise à jour
- Avec protection des moteurs qui peuvent aider à la dissipation de chaleur
- 2 axes
- Conçu pour la caméra du Phantom Vision 2 DJI et Quadcopter FC200

Questions et réponse:

Q1:How to solve the power supply of gimbal?
A:This gimabl using 12v power supply,red and black cable with 3s balanced port,can use the ordinary 3S battery to test the gimbal(When tested,the FC200 camera need to be mounted on the gimbal,otherwise it will severe vibration because of the imbalance),when it is working,please cut off the balance port,weld the black and red power cable to the Phantom motherboard power port(need to open the aircraft),red connect  to the anode,black to negative,please be sure to confirm correct,otherwise the gimbal controller will burn out.

Q2:How to control the pitch and roll?
A:DJI Phantom internal use NAZA flight controller which has F1,F2 two signals.F1 is used to output the roll signal,F2 is used to output the pitch signal.The two signals may need to shut down the gimbal self-stability function in NAZA software.The wiring diagram is as follows:


Q3:Is there any manual,installation video or  adjust parameters software for this product?
A:Really sorry about this,because it is easy to install,we don't provide any manual or video.Adjust parameters software please click here.(It may need JAVA supported)

Dans la boite:
1x Nacelle 2 axes pré-montée
2x moteurs 2208
1x Contrôleur
Accessoires de fixation et connectique
Câble USB vers micro USB
Amortisseurs

LIVRÉE SANS CAMERA DJI
