Pont avant et arrière ARB Special Edition T-Rex 60 Plastique Complet - Crawlers 1/10 1.9" & 2.2"

Pont avant et arrière ARB Special Edition T-Rex 60 Plastique Complet
Part Number Z-A0052

Cet ensemble d’essieu édition spéciale ARB est très Réaliste. Conçu à la fois pour taille 1.9 ou 2.2 Truck!

Specifications:

- ABS Plastic Housing
- Hardened Steel Spool Gear
- ARB removable diff cover
- 5mm Axle Output Shaft
- Heavy Duty Axle for Maximum Steering
- Aluminum Steering Knuckles
- Full Ball Bearings
- Width: 190mm / 8inch (Hex to Hex)
- Gear Ratio: 2.5:1
- Designed for 1: 10 to 1: 16 Scale Truck!
- Hex to Hex Width: 185mm / 7.28"
- Pin to Pin Width: 174mm / 6.85 "
- Pumpkin Height: 39mm / 1.53 "
- Output Shaft OD: 5mm / 0.19"
- Weight (Front): 181 g / 6.4oz
- Leaf Mount Width: 82.5 mm / 3.24 "
- 12mm Steel Wheel Hex
- Weight (Rear): 153 g / 5.4oz

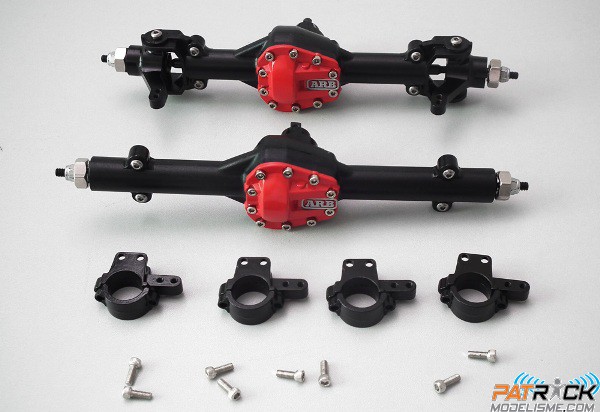

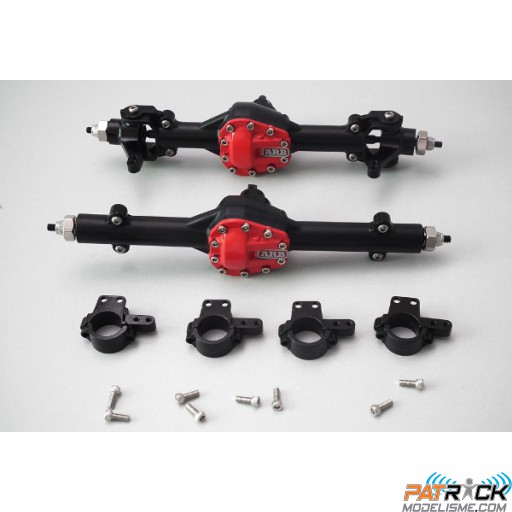

What's Included:

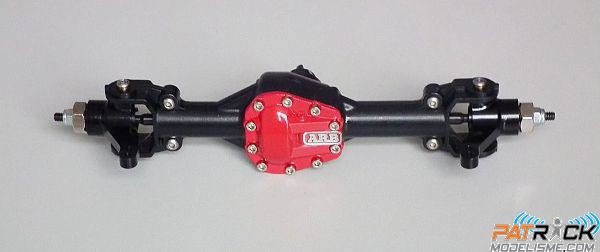

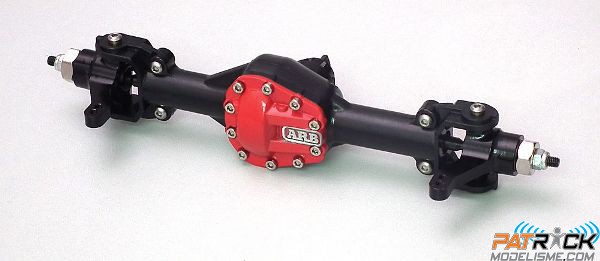

- 1x ARB Special Edition T-Rex 60 Plastic Front Axle

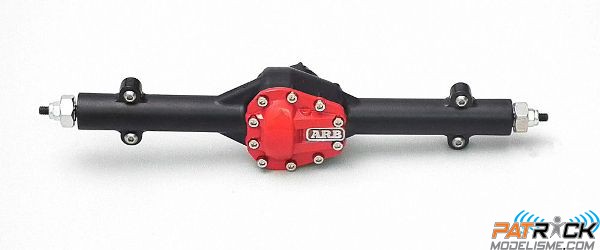

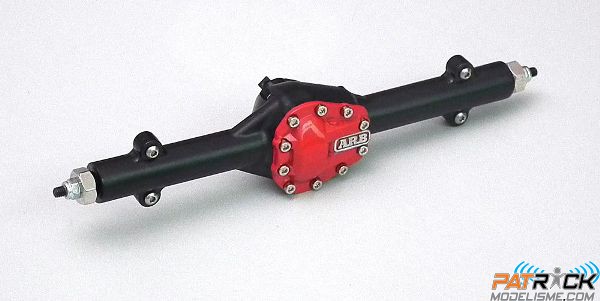

- 1x ARB Special Edition T-Rex 60 Plastic Rear Axle
- 4x 4 Link and Shock mounts
- 8x M3 Hardware

Optional Parts:

- Mini 12mm Wheel Widener (4) (Z-S0407)

Replacement Parts:

- 2x Set of Alum Lower 4 Links Mounts (Part # Z-S0542)
- 1x Steel straight axle (Part # Z-S0433)
- 1x Heavy duty axle shaft front (Left & Right) (Part # Z-S0478)
- 2x Bevel Shaft (Part # Z-S0479)
- 2x Heavy Duty Spool gear (Part # Z-S0200)

Hop up parts:

- Billet steel servo mounts (Z-S0562) (this is a recommended upgrade)**
- CNC machined alum front axle housing (Part # Z-A0050)
- CNC machined alum rear axle housing  (Part # Z-A0051)
- CNC machined alum steering knuckles (Part # Z-S0569)
- Aluminum Axle C (Part # Z-S0576)
- XVD front axle set (Part # Z-S0092) Steering Kit is part # Z-S0022
- Aluminum Diff covers (Part #' Z-S0406)
- ARB Diff cover (Part# Z-S0220)

Important Note:

- This axle is designed to work with R2 black transmission (Z-U0009), R2 Silver (Z-U0010), R2 2 Speed (Z-U0011) or AX10 transmission. You do have to purchase a special Punisher Shaft II with 5mm holes.
- The gears don't come pre-lubed. You will need to remove the front cover and use your preferred lubrication or part # Z-S0520 (Monster Lube)
- To get more width, you can use 12mm widener (Z-S0449) or (Z-S0407)

ARB is a registered trademark of the ARB company. The ARB logo is property of ARB.
