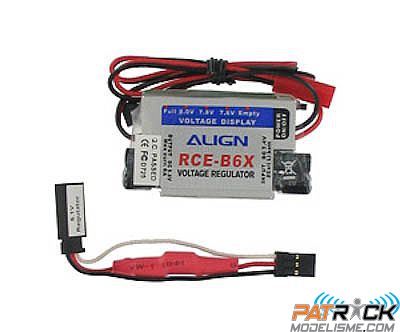

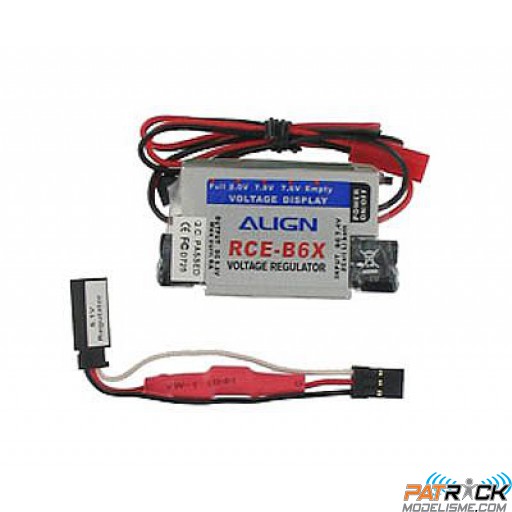

Régulateur de voltage RCE-B6X 6A Bec

Régulateur de voltage RCE-B6X 6ABec

Caractéristiques :

Tension maximum à réguler : 7.4V
Tension régulé : 5.8V à 6A
Interrupteur : oui
Dimension : 60x35x15mm
Poids : 31g
_______________________________

Instructions:
- Using linear design, input power: 2 cell Li-ion or Li-poly battery, features no interference to receiver.
- Features power switch and voltage indicating light for battery status, to remind users to avoid over discharge the receiver’s battery and out of control caused by low voltage.

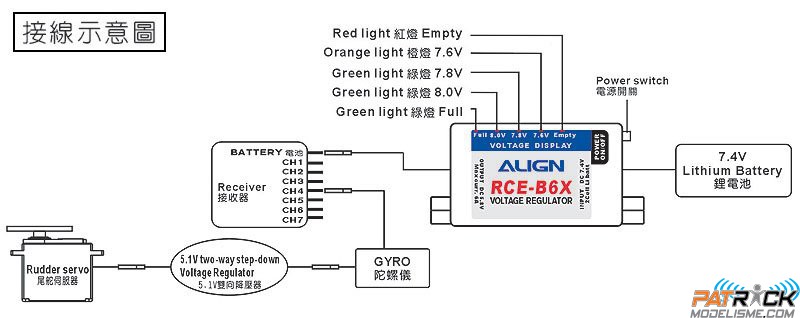

- For some servos such as Futaba servo models 9241, 9251, 9253, 9254, 9255, 9256 and other digital servos are not capable of handling 6V, please connect a 5.1V step-down voltage regulator to the rudder servo, or connect it between BEC (ex. RCE-B6X) and the receiver for all servos. It could avoid the servos overloading and damaged.

Spécification:
- Input voltage: DC 7.4V 2CELL Lithium battery
- Output voltage: DC 5.8V
- Max. continuous current: 6A
- Size: 60x34x15mm
- Weight: 31g(including wire set)

[5.1V two-way step-down voltage regulator]
- Max continuous current: 5A
- Length:104mm
- Weight:4.2g
