Servo Align DS430M métal cyclique 250/450

HSD43001
DS430M Digital Servo

Instruction:
●Suitable for T-REX 450 series.
●Faster speed with high torque performance, allowing helicopter to perform with faster and higher precision.
●Along with double bearing support, resulting in minimal dead-band of gear and better longevity.
●High rigidity, shock resistant metal gears with high strength composite alloy gears with durable structure characteristics.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo, suitable for T-Rex 250/450 CCPM cyclic use.     ●Stall torque:2.3kgcm（4.8V）
●Stall torque:2.9kg.cm（6.0V）
●Motion speed:0.095sec/60°（4.8V）
●Motion speed:0.08sec/60°（6.0V
●Rating voltage:DC 4.8-6V
●Temperature range:-20°C~+60°C

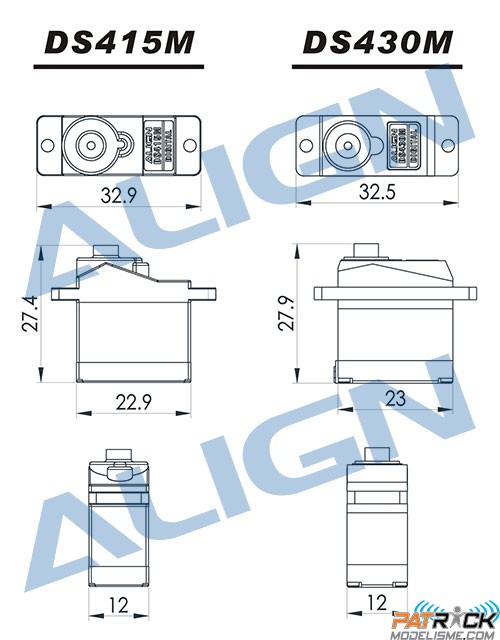

●Dimension:22.8 x 12 x 25.4mm
●Weight:15g
●1520μs standard band

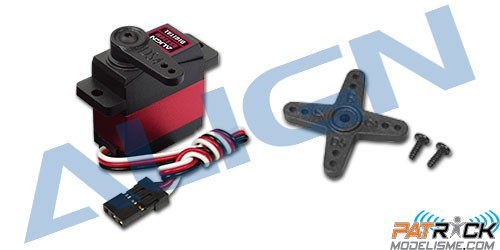

Accessories:
●Servo rudder piece x 2
●Set screw x 1
●Tapping screw for servo x 2
