Servo Align DS515 METAL

HSD51501
DS515M Digital Servo

Specification:
●High rigidity, shock resistant metal gears.
●Coreless Motor Design for fast speed, high efficiency, and low power consumption.
●10 Bits signal resolution for smooth movements.
●Fast speed with high torque of 5.0kg/cm. High strength composite alloy gears with durable structure characteristics.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo suitable for T-Rex 500 CCPM cyclic use.



●Stall torque:4.0kg.cm(4.8V)
                   5.0kg.cm(6.0V)
●Motion speed:0.12sec/60°(4.8V)
                     0.101sec/60°(6.0V)
●Rating voltage:DC 4.8-6V
●Temperature range:-20°C~+60°C
●Dimension:35.1 x 15.1 x 29mm
●Weight:29g
●1520μs standard band

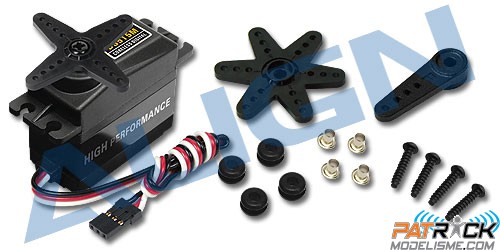

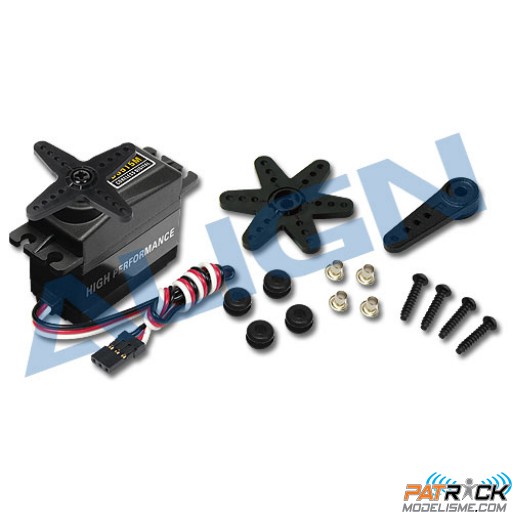

Accessories:
●Servo rudder piece x 2
●Set screw x 1
●Rubber damper x 4
●Brass grommet x 4
●Socket button head tapping screw(T2.6x12mm)x 4
●D5AF Servo horn x 4
