Servo Align DS615 METAL

HSD61501
DS615 Digital Servo

Instruction:
●Higher performance superiority, increased output torque, faster reaction time, resulting in higher holding power on those momentary pauses in between 3D maneuvers, providing precise control feel.
●Coreless Motor Design for fast speed, high efficiency, and low power consumption.
●Hardened high strength super alloy gears that increase the lifetime.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo, suitable for T-Rex 600/700 swashplate and rudder use.


Specifications:
●Stall torque:10.4kg.cm(4.8V)
                   12.8kg.cm(6.0V)
●Motion speed:0.09sec/60°(4.8V)
                     0.07sec/60°(6.0V)
●Rating voltage:DC 4.8-6V
●Temperature range:-20°C~+60°C
●Dimension:40.1 x 20.1 x 37.3mm
●Weight:56g
●1520μs standard band

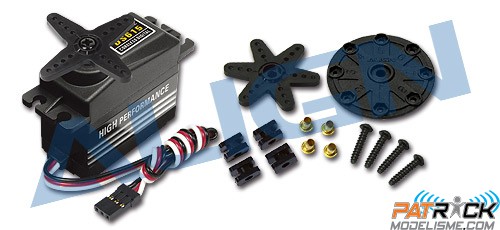

Accessories:
●Servo rudder piece x 2
●Set screw x 1
●Rubber damper x 4
●Brass grommet x 4
●Socket button head tapping screw × 4(T2.6x12mm)
●F Servo horn x 1
