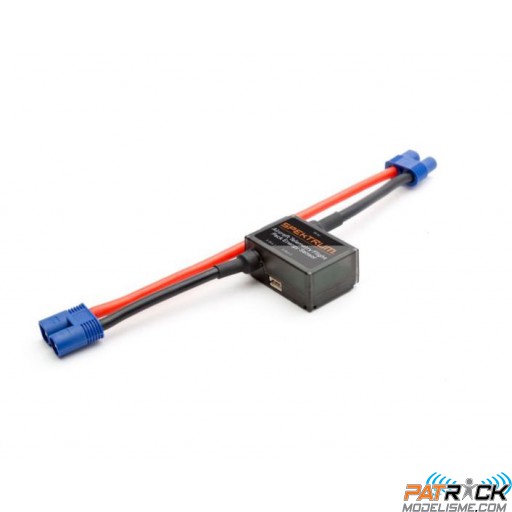

Spektrum Télémétrie - Capteur de puissance pour grosse batterie

Spektrum Télémétrie - Capteur de puissance pour grosse batterie

Réf. : SPMA9605

Key Features

    Measure mAh (coulombs) – Monitors the level of mAh used in a single flight pack battery
    Compact Design – Small footprint allows for virtually unlimited applications
    Easy Set Up – No calibration or programming of the unit itself is required
    EC3 Connectors – Uses standard EC3 battery connectors to easily connect between the battery and ESC

Overview

The Spektrum Aircraft Telemetry Flight Pack Energy Sensor is designed to measure Capacity Used, Current, and Temperature of your flight pack. With this information you’ll be able to determine how much capacity has been used by your electric power system all the while monitoring the results through the telemetry settings in your telemetry compatible Spektrum transmitter. Pre-wired with a EC3 power connector the Flight Pack Energy Sensor also allows you to monitor the temperature of the battery while in use. With its light weight design and simple installation you’ll be flying with confidence in your aircrafts power system.

Type:     Single Energy Sensor
Length:     1.3 in (33mm)
Width:     0.9 in (23mm)
Height:     0.6 in (15mm)
Weight:     0.85 oz (24g)
Application:     Telemetry
Measures:     mAh (Coulombs)
Wire Gauge:     13 AWG
Connector Type:     EC3
Input Voltage:     3.5–50V
Maximum Continuous Current:     60A (Change EC3 connector to EC5 if current exceeds 60A)
Maximum Burst Current:     140A (with sufficiently rated connector and wire)
