Support 3 axes Photo ou Camera ALWARE EAGLE Pro V3 Grand Angle 260° avec servos digitaux

Eagle F450-550 Pro V3 Camera Mount
Model: ALPRO3CMV3

Introduction:
A distinctive, professional, functional and underslung Alware Pro Series Camera Mount is now launched to this wonderful RC world! This Pro V3 Camera Mount can be operated by an RC pilot or with a camera operator. It is steered by 2-3 channels to pan(optional), tilt and roll the camera. With this Pro Camera Mount Kit installed, the CG of the Aircraft will become lower. This will highly increase the stability for better aerial filming/ FPV activities.

Differ from other Camera Mounts, Alware Pro Series Camera Mount operates with all fiber glass precise gears and high tolerance metal shafts. This greatly increase it's performance for professional aerial filming. Alware Pro V3 Camera Mount is made with lightest and strongest materials, Aluminum alloy and Fiber Glasses. All parts are manufactured by precise CNC technology which can produce a higher quality product. With double ball bearings design for every movement joints, Alware Pro V3 Camera Mount will be one of the best and professional Camera Mount for GAUI 330X(power system upgrade is required), GAUI 500X, Alware Spider 500, DJI F450/ 550 Multicopters and other 450-500 size Helicopters. This Pro V3 Camera Mount is 95% complete pre-assembled by well trained Technicians before releasing to the market so no worries about any installation time and issues.

Alware 2/3-Axis F450-550 Pro V3 Camera Mount capable with Cameras/ DV Cameras up to the dimension of: 133*125mm(Wide*High), such as
GoPro, 1080P HD Camcorder, Sony DCR-SX65 Camera, Sony AS3 etc.


Features:
Advanced upgraded benifits of V3:
* CNC main shaft metal mount.
* Operate with CNC fiber glass unique gears with better ratio for all axises which provide wider movement angles.
* Larger room to hold bigger professional cameras (max. size 133*125mm(wide*height)).
* Pan-axis can be fixed easily if necessary to reduce the total weight.
* Larger 3-Dimension movement.
* Strengthen Camera Stand Frame.
* New Collapsible Landing Gear.
* Zero tolerance on the Roll mechanism design.
* Capable for GAUI 500X, Alware Spider 500 as well as DJI F425/550 Multicopters.

- Also suitable for 450-500 size Helicopters.
- With new, distinctive, professional, functional and underslung designed.
- Steered by 2-3 channels to pan(optional), tilt and roll the camera with fiber glass precise gears and high tolerance metal shafts.
- Controlled by 3x ALware MD260 Metal Digital Servo 260 Degrees which is a wide angle and powerful small size servo and is the best for camera mounts.
- Double ball bearings design for every movement joints which provides precise movement for all axises.
- Operate with unique fiber glass gears which highly increase the performance and movement angle of all axises.
- 2D(X & Y Axises) Spirit Level included, easy to set the level point.
- Made of flash, light and strong fiber glass plates as well as CNC Aluminum Metal Parts.
- Manufacture by precise CNC technology.
- Underslung mounting design which highly increase the stability of the aircraft in the sky due to lower CG position.
- Relatively large room to mount varies cameras (Max. size 133*125mm(Wide*Height)).
- 95% Pre-assembled and tested by well trained Techinicans, no worries about any of the installation issue.


Specification:
Control Axis: 2-3 Axis Controllable Camera mount [Pan(optional), Tilt, Roll]
Mounting: Bottom plate assemble method
Material: Flash, light and strong fiber glass plates, Unique CNC Fiber Glass Spur Gears;
CNC Aluminum Rods and Mounts; High quality Flange Bearings and Screws.
Bearing type: Flange Bearings
Main Shaft Mount: CNC Anodized Metal Mounts
Color: Black fiber plates; Silver anodize Aluminum parts.
Dimension of portable camera: Max. 133*125mm(Wide*Height)
Payload Capability: Up to 800g (But it is limited to the power of your Aircraft)
Operate Servo size: Standard small size servos e.g. ALware MD260, Align DS410, SAVO SH-0261 etc.
Gyro Stabilization for Camera Mount: Build in Gimbal stabilize function of some GPS systems (e.g. GAUI GU-INS, DJI WooKong-M etc), FY-30A 3-axises Stabilizer etc.
Camera Mount Weight: ~480g (3-Axis Mode), 400g (2-Axis Mode) (Including Metal Gear Digital Servos)
Max. Height: ~281mm
Max. Length: ~296mm
Max. Wide: ~275mm
Pan Range: 0-85°
Tilt Range: 0-90°
Roll Range: 0-45°


Included:
- 1x Alware 2/3-Axis F450-550 Pro V3 Camera Mount Kit(95% Pre-assembled)
- 1x Collapsible Landing Gears
- 2x Spirit Levels
- 3x ALware MD260 Metal Gear Digital Servo 260 Degree (NEW! Operate with wider angle!)

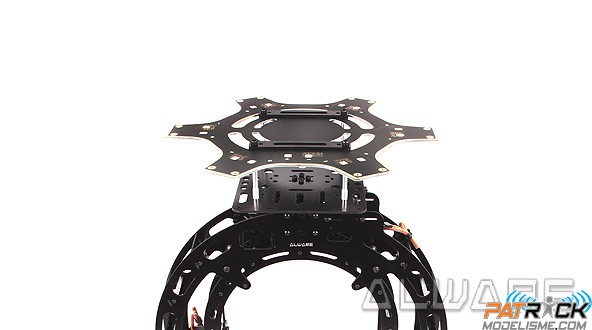

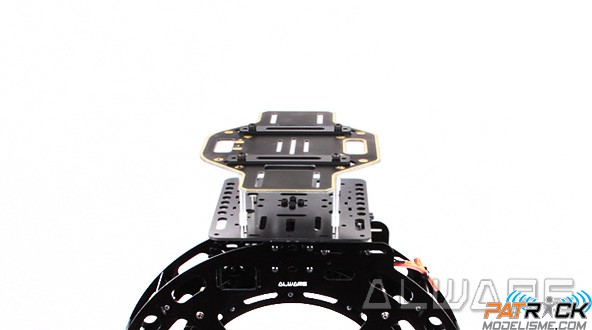

- 1x Mounting Frame Set for DJI F450/550 Multicopters
- 1x High Quality 1/4 x 13mm Camera Screw
(Please be Noted: Gyro, Aircraft, Camera are not included)

Download Instruction Manual


More Assembly Guides is Now Available on Alwarerc Youtube Channel


Vidéos:

ATTENTION:

Pour le montage sur un DJI F550, le chassis étant conducteur , ne pas percer, risque de court circuit , l'adaptation avec double face et colliers ou visserie nylon ou est conseillée.
