Support 3 axes Photo ou Camera Alware Pro V2 Remplacé par version V3

Introductions:
A distinctive, professional, functional and underslung Alware 3-Axis 330/500X Pro V2 Camera Mount is now launched to this wonderful RC world! This Pro V2 Camera Mount can be operated by an RC pilot or with a camera operator. The Pro V2 Camera Mount is steered by 3 channels to pan, tilt and roll the camera. With this Pro V2 Camera Mount Kit installed, the CG of the Aircraft will become lower. This highly increase the stability for better aerial filming/ FPV activies.

Differ from other Camera Mounts, Alware 3-Axis 330/500X Pro V2 Camera Mount operates with all fiber glass precise gears and high tolerance metal shafts. This greatly increase it's performane for prefessional aerial filming. Furthermore, a brand new and functional elastic Landing Gear System is included with this Pro Camera Mount. Each leg of the Landing Gear operate with double tension springs those can be expanded and contracted vertically and individually. It can absorbs shock rised whatever landing on tough ground or meadow. This is one special and important feature of Alware 3-Axise 330/500X Pro V2 Camera Mount and so Camera placed on the it can be effectively protected.

Alware 3-Axise 330/500X Pro V2 Camera Mount is made with ligtest and strongest materials Aluminum alloy and Fiber Glasses. All parts are manufactured by precise CNC technology which can produce a higher quality product. With double ball bearings design for every movement joints, Alware 3-Axise 330/500X Pro V2 Camera Mount will be one of the best and professional Camera Mount for GAUI 330X(power system upgrade is required), GAUI 500X, Alware Spider 500, 450-500 size Helicopters etc. This Pro V2 Camera Mount is completely pre-assembled by professionals before relasing to the market so no worries about the installation issue and time.

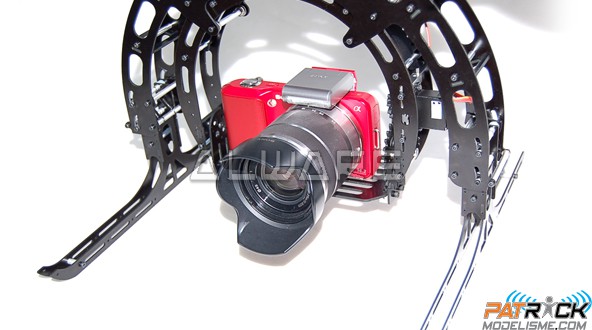

Alware 3-Axise 330/500X Pro V2 Camera Mount accepts Cameras/ DV Cameras up to the dimension of:
133*107mm(Wide*High), such as GoPro, 1080P HD Camcorder, Sony DCR-SX65 Camera, Sony AS3 etc.

Features:
(Compare to the first version, Pro V2 Camera Mount have the following upgrades and benifits:)
- CNC main shaft metal mount is used in this Pro V2 Camera Mount.

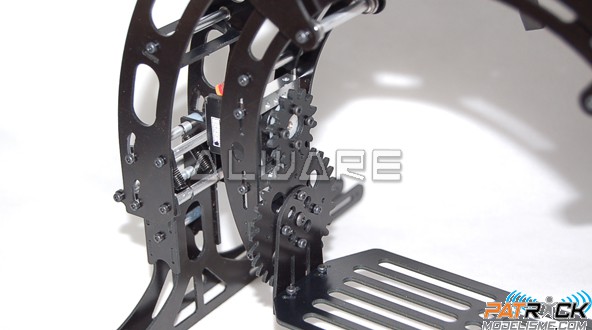

- Operate with CNC fiber glass unique gears for all axises which provide wider movement angles for Pro V2 Camera Mount.
- Larger room to hold bigger professional cameras (max. size 133*107mm(wide*height).
- Pan axis can be fixed is necessary especiall for helicopters.
- Comes with 2x Alware Wide Angle MD260 Metal Gear Digital Servos and 1x SAVOX MG Digital Servo.

- Suitable for GAUI 330X(power system upgrade is required), Alware Spider 500 QuadFlyers, GAUI 500X, 450-500 size Helicopters etc.
- With new, distinctive, professional, functional and underslung designed.
- Steered by 2-3 channels to pan(optional), tilt and roll the camera with fiber glass precise gears and high tolerance metal shafts.
- Controlled by 3x ALware MD260 Metal Digital Servo 260 Degrees which is a wide angle and powerful small size servo and is the best for camera mounts.
- Double ball bearings design for every movement joints which provides precise movement for all axises.

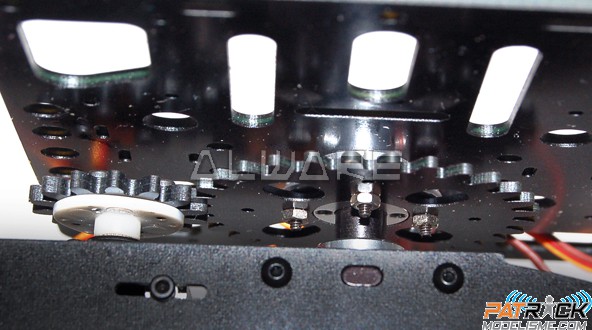

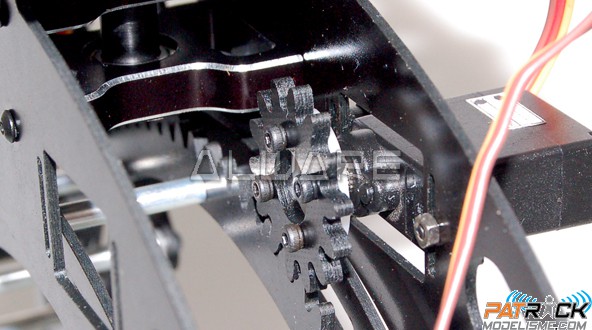

- Operate with unique fiber glass gears which highly increase the performance and movement angle of all axises.

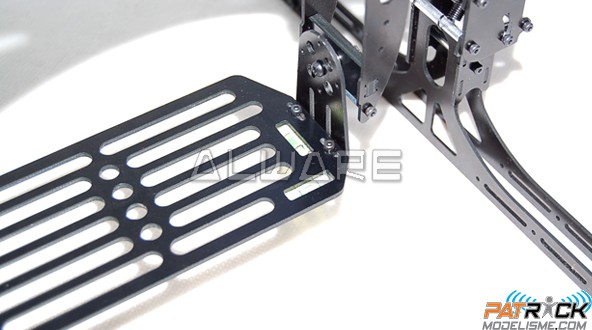

- 2D(X & Y Axises) Spirit Level included, easy to set the level point.

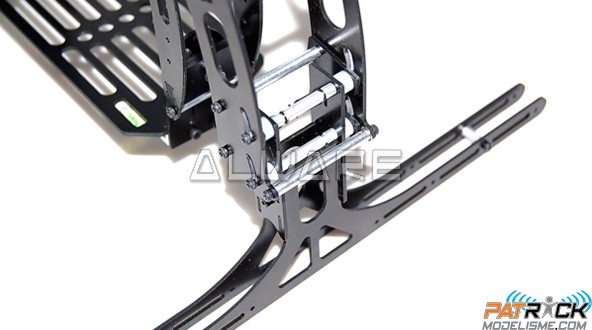

- With Supper Elastic Landing Gear System, equipment can be protected effectively during landing processes.
- Made of flash, light and strong fiber glass plates as well as CNC Aluminum Parts.
- Manufacture by precise CNC technology.

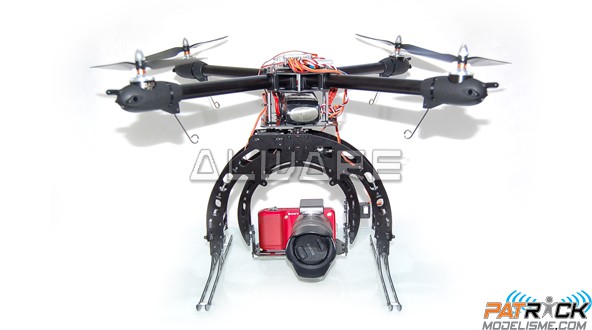

- Underslung mounting design which highly increase the stability of the aircraft in the sky due to lower CG position.
- Relatively large room to mount varies cameras (Max. size 133*107mm(Wide*Height)).
- Completely Pre-assembled, no worries about any of the installation issue.

Specification:
Control Axises: 2-3 Axis Controllable Camera mount [Pan(optional), Tilt, Roll]
Mounting: Bottom plate assemble method
Material: Flash, light and strong fiber glass plates, CNC fiber glass unique gears; CNC Aluminum Rods; Hight quality Flange Bearings and Screws.
Bearing type: Flange bearings

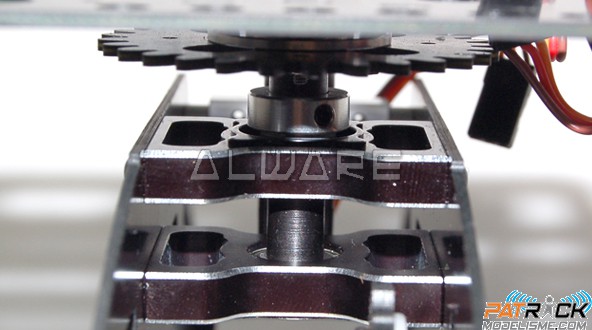

Main Shaft Mount: CNC Metal Mount
Camera Mount Weight: ~430g (Including three metal gear digital servos)
Max. Height: ~231mm
Max. Length: ~276mm
Max. Wide: ~280mm
Dimension of portable camera: Max. 133*107mm(Wide*Height)
Payload Capacity: Up to 800g (But it is limited to the power of Aircraft)
Operate Servo size: Standard small size servos e.g. ALware MD260, Align DS410, SAVO SH-0261 etc.
Color: Black fiber plates; Silver anodize Aluminum parts.
Gyro Stabilization for Camera Mount: Build in Gimbal stabilize function of some GPS systems (e.g. GAUI GU-INS, DJI WooKong-M etc), FY-20A 3-axises Stabilizer etc.

Included:
- 1x Alware 3-Axis 330/500X Pro V2 Camera Mount Kit (Pre-assembled)
- 1x Functional Elastic Landing Gear System (Pre-assembled)
- 2x ALware MD260 Metal Gear Digital Servo 260 Degree (NEW! Operate with wider angle!)
- 1x SAVOX MG Digital Servo
( Please be Noted: Gyro, Aircraft and Camera are not included)

ATTENTION:

Pour le montage sur un DJI F550, le chassis étant conducteur , ne pas percer, risque de court circuit , l'adaptation avec double face et colliers ou visserie nylon ou est conseillée.
