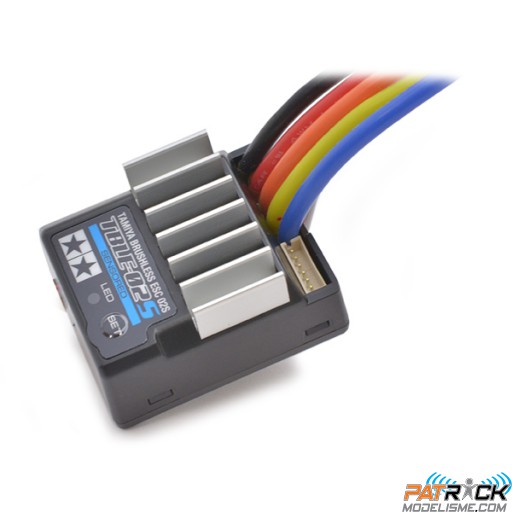

Variateur Tamiya Brushed/Brushless TBLE-02-S

This ESC is especially designed for use with the TBLM series of Tamiya Brushless Motors
(Sensored-Type, 10.5T, 12.5T, 14.5T, 16.5T).

Brake and neutral brake settings can be adjusted independently, and it features 3 protection
systems against overheating, overloading and low voltage.

It is also compatible with brushed motors (Normal Type 540 and Sports-Tuned Motors 25 Turn or higher).

Note: When using servos with a current exceeding 1.5A, BEC output may be shut down.

Specifications:
    Forward, Reverse, Braking (Reverse function may be disabled)
    Input voltage: 6.6-7.2V
    Dimensions: 42mmx34mmx25mm
    Max. continuous current: 60A
    Receiver output: 6V/1.5A
    Weight: 50.8grams (including cables)
    Protection systems: overheat, overload, low voltage to 4.8V (LiFe battery only) Note: Does not support LiPo 6.0 voltage cut-off
    Compatible motors: TBLM series (sensored) Sport Tuned brushed motors 540 size over 25T
